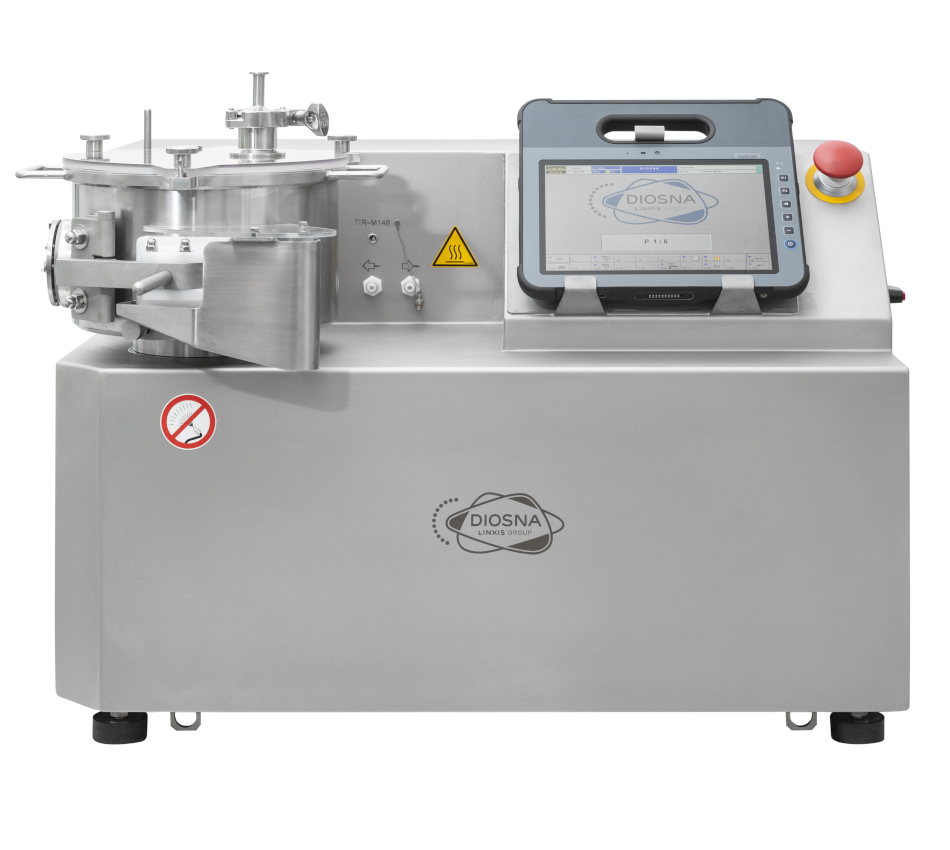

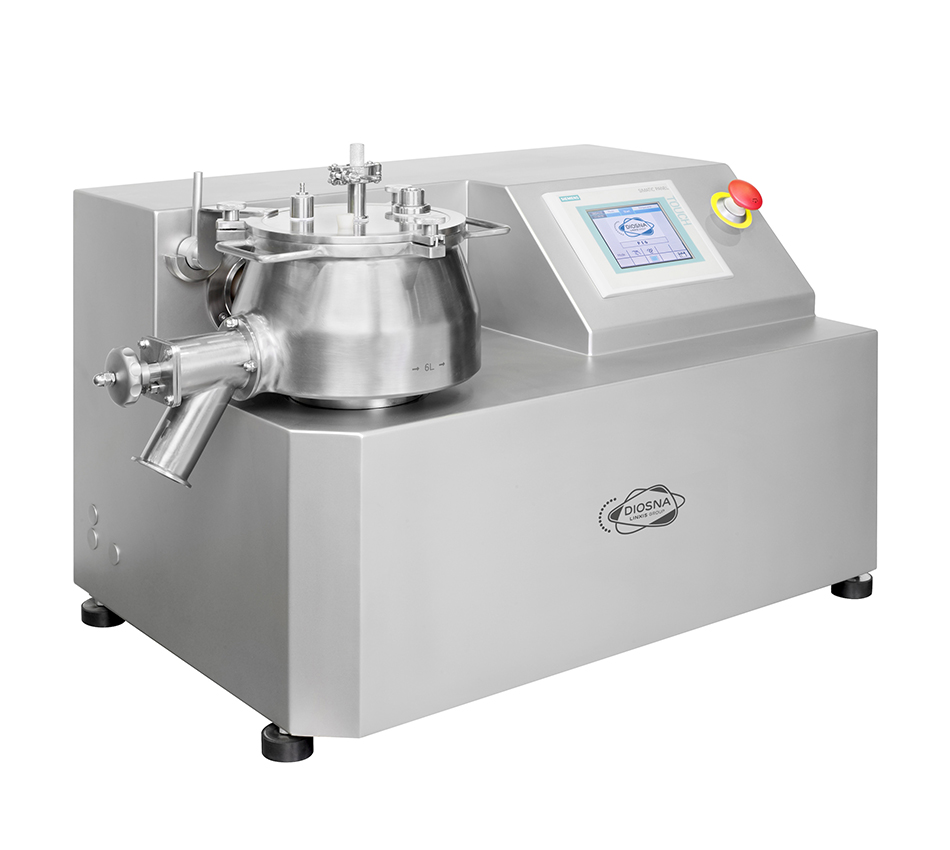

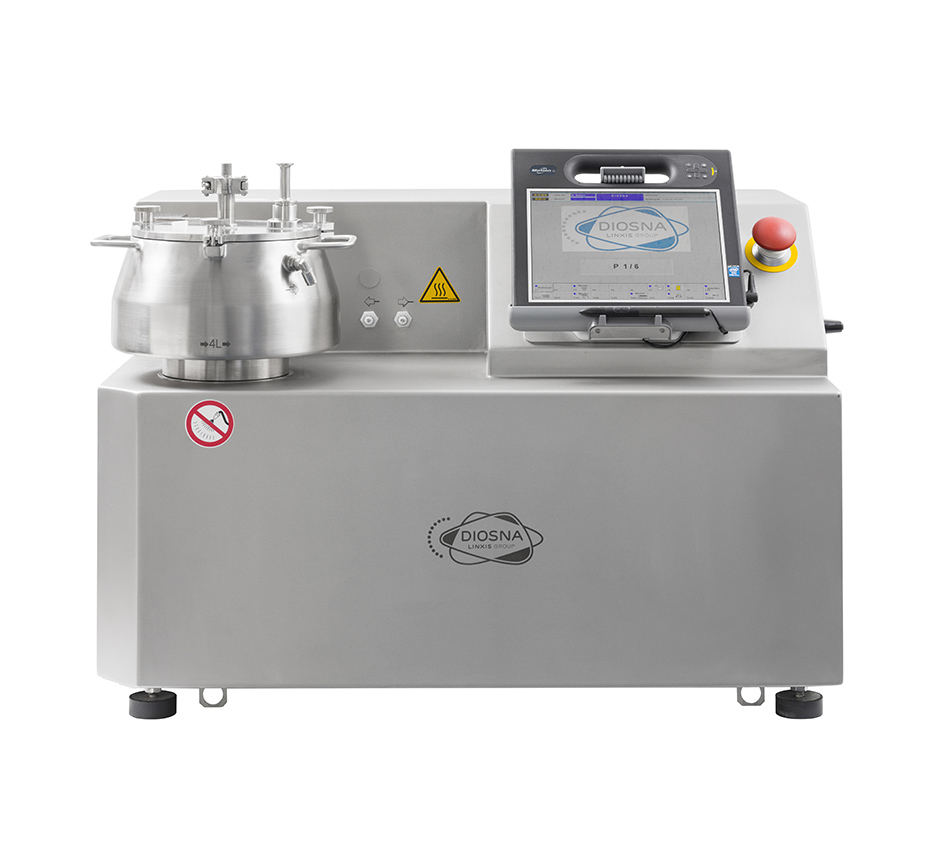

P1-6 – the compact and efficient laboratory mixer

Mixing. Granulate. Pelletize. Being progressive.

Your main benefits
  • High efficiency: fast mixing times with highest quality
  • Perfect homogeneity
  • High-Shear-Mixing: Best API Distribution

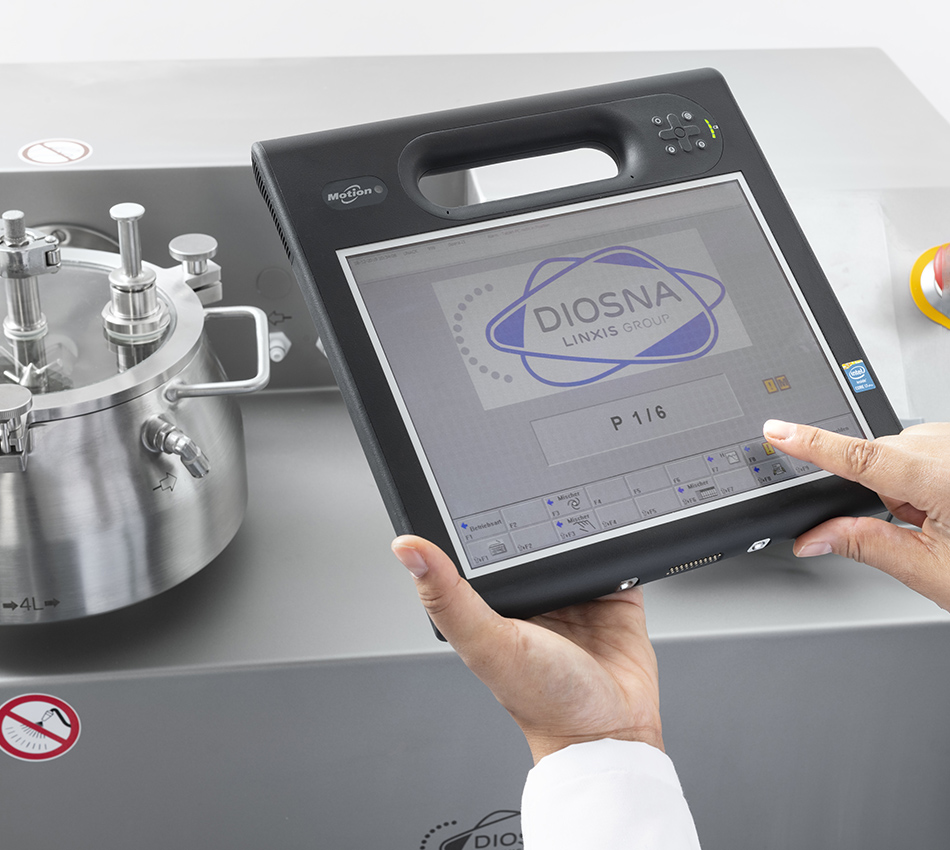

  • Intuitive handling through PLUG & PLAY
  • Tool-free scale-up and easy retrofitting
  • Optionally with Spheronizer for pellet production

The P1-6 laboratory mixer combines the highest quality mixing, granulation and pelletizing in one machine. To make your R&D work as efficient as possible, the mixer offers a multifunctional and at the same time space-saving solution for your laboratory.

[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]
[Translate to English:]

With the P1-6 laboratory mixer, you secure a high-quality solution for your laboratory work, because it combines the highest-quality mixing and granulation in one machine. The high-shear mixer-granulator has a floor drive and is designed for the special requirements of your demanding laboratory work.

Your advantage: your R&D work is more modern, cleaner and highly efficient.

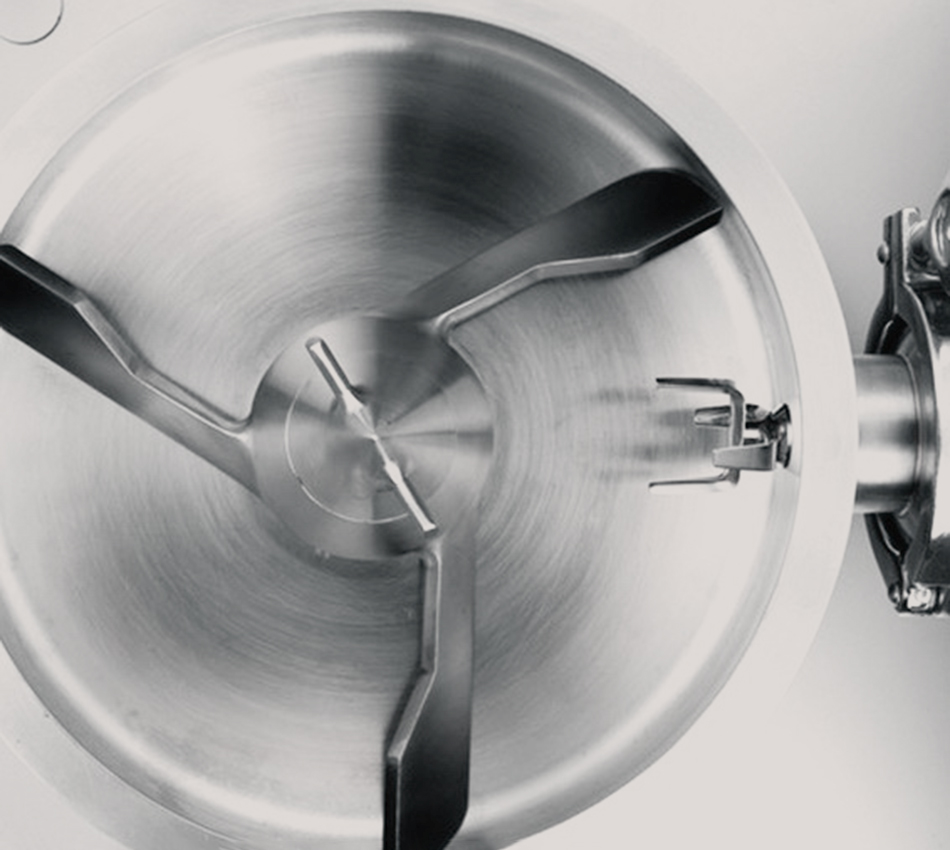

When it comes to mixing, the special feature of the P1-6 is its cylindrical-conical mixer geometry. With this continuously optimized innovation from our company, as well as the installed chopper tool, you achieve perfect homogeneity of the particle sizes and the best possible API distribution for every solid, wet or hot melt granulation, entirely according to your wishes.

The P1-6 laboratory mixer is a reliable "laboratory starter" and guarantees reproducible products at all times.

Bowl sizes 0.25,0.5, 1, 2, 4 and 6 L
Batches from 0.04 to 2.7 kg
Chopper speed (min -1) 220 - 2,200
Dimension
Length 950 mm
Width 550 mm
Height 550 mm

DIOSNA products are subject to constant optimization and further development. DIOSNA therefore reserves the right to make technical changes. The contractually fixed agreement in the individual case is decisive for the promised properties, services and the quality of the DIOSNA products. We will be happy to send you further information on request.
